S系列

 提示:点击图片可以放大




Himod S系列是公司1997年开发的模块式专用空调采用了许多新技术和新工艺,从对机房环境空间的适应性、高效节能、经济性、降噪和环境保护等方面赋予机房专用空调全新的概念。制冷量 from 4 to 30 kW下送风,上送风,可在现场互相转换,具有密码保护、专家故障诊断功能,相序检测功能,可实现来电自启动。最优化和灵活的结构体系,可7速调节插拔式风机,灵活的内部设计,制冷机回路最长可达 50 m,高 30 m Class 0 (A1 EU) 防火面板,全系列所有模块均为高调节精度,全系列所有模块风向均可调,全系列模块的主要部件均固定安装于模块内,仅风机方向可为满足上送/下送的要求变化,主要部件方便安装拆卸,送风机型为风机推动式设计,非常高的温度及湿度控制精度 (±0.3°C±2%RH)

S series was developed by the company in 1997 which is modularized type of air conditioner using the new technology and new process, given the new concept of air conditioner from the aspects of environmental space adaptability, high efficiency, energy saving, economy, noise reduction, and environmental protection. Cooling capacity is from 4 to 30 kW. The blowing direction can be changed in the field. It comes with password protection, expert fault diagnosis function, phase sequence detection function, and the call for the start. The function includes the optimization and flexible structure system, 7-speed regulating plug type fan, interior flexible design, refrigeration loop up to a maximum of 50 m x 30 m, and Class 0 (A1 EU) fire panels. The full range of all modules is highly accuracy and adjustable air direction. The main component of all series modules is fixed in the module with fan direction for meeting the requirement of above and below air blowing. It is convenient installation and disassembly. The blowing machine is the fan driven design and very high temperature and humidity control precision (± 0.3 ° ± C; 2%RH).

    优点:
    1
.先进的智能化控制技术,Hiromatic图形控制器,易操作的人性化界面,精确的微电脑控制系统;多级密码保护,防止误操作;具备运行状态智能显示、专家故障诊断功能;记录各主要部件的运行时间;设置参数自动保护,即使停电后也可以保存运行参数和告警记录。

The function includes the advanced intelligent control technology, Hiromatic graphics controller, user-friendly interface, microcomputer control system, multilevel password protection, prevention of the missed operation, operation status, and intelligent fault diagnosis expert system recording the main parts of the running time. It has the automatic protection settings, even after the power failure can also save operation parameters and alarm records.

    2.高可靠性,超宽输入电压设计,来电自启动;高低电压自动监测和保护功能;产品按照每年365天,每天24小时运行长寿命设计。

It is highly reliable, wide range voltage designed, and calling of starting. With high and low voltage automatic monitoring and protection function is good for 365 days a year, 24 hours a day running time.

    3.易操作维护的结构设计,全正面维护结构,易打开的前面板设计,机组维护方便易行,灵活的机组安装方式。

Structure design for easy operation and maintenance and installation allows to access in front of panel.

    4.超强网络管理功能,配置RS485监控接口,提供标准的通信协议,灵活的主备机切换功能,实现机组自动切换、轮流值班功能,方便的远程开关机和管理功能,远程告警及查询和远程故障处理及消声。

Super network management function with RS485 interface providing the standard communication protocols and switching function realizes the unit automatically switch. It also provides taking turns on duty function, remote switch and managing function, alarm and remote query and remote fault processing and noise elimination.

    5.高显热比:通讯机房内电子设备释放出大量的显热。针对机房特点实现0.9以上的高显热比,在机房环境下使用,相对于普通舒适性空调节省20-30%的能耗,并因此避免过度除湿和送风带雾。

High SHR: The electronic equipment in the communication room releases large quantity of sensible heat. The feature is to achieve high sensible heat ratio above 0.9 which used in the computer room, and is compared with ordinary comfort air conditioning energy saving up to 20-30%. Thus, it avoids excessive dampness and the foggy wind.

    6.先进的微电脑控制器:先进的微电脑控制大屏幕LCD背光显示易操作的人性化界面精确的微电脑控制系统多级密码保护,防止误操作具备运行状态智能显示、专家故障诊断功能记录各主要部件的运行时间设置参数自动保护,即使停电后也可以保存运行参数和告警记录具有来电自启动及延时设定功能。

Advanced microcomputer controller: The advanced microcomputer control with large LCD display provides the user-friendly interface, easy operation and accurate of microcomputer control system for multilevel password protection, prevention of the missed operation, running status intelligence display, expert fault diagnosis function of recording the running time, and setting parameter automatic protection. Even after the power failure can also save the operation parameters and alarm record with the call for the start and delay setting function.

    7. 易操作维护的结构设计:
    机组结构紧凑,只需很小的维修空间及地面空间,全正面维护。易打开的前面板设计,机组维护方便易行,灵活的机组安装方式。冷量,送风风速自动调节。

Structure design for easy operation and maintenance: The unit with compact structure is required less space for repairing and is accessed in front for maintenance. Front panel design is easy to open, convenient maintenance and easy installation. Air speed is automatic adjustable.

    8.高能效比压缩机:
    应用高能效比的谷轮(Copeland世界上最大的涡漩式压缩机生产厂)公司涡漩式( SCROLL )压缩机。涡漩压缩机的活动部件的减少使机组的噪声及震动降低很多;压缩机的压缩过程连续、平稳;压缩机的排气过程旋转角度超过540度;在吸气及压缩过程中没有热量交换;在压缩过程中制冷剂气流方向没有改变;减少了气流损失;涡漩式压缩机无需高、低压阀门;减少了阀门容积损失,专利的动、静涡旋脱离技术可有效防止产生液击;启动电流低。同类压缩机能效比最高,达到3.4

High efficient compressor: The unit is used the high efficient Copeland vortex type scroll compressor (Copeland is the world's largest vortex compressor factory). The active components of vortex compressor reduce the unit's noise and vibration a lot. The compression process is continuous and stable. The exhaust process rotates angle more than 540 degrees. In the suction and compression process there is no heat exchange. The refrigerant flow direction did not change during the compression process. Reducing the flow loss lets the vortex compressor without using the high and pressure valves. Reducing the volume loss of patent valve, dynamic and static vortex from the technology can effectively prevent the liquid hammer and lower starting current. The energy efficiency ratio for similar compressor is the highest, reaching 3.4.

    9.无级调速低噪风冷冷凝器:风冷冷凝器采用船用等级耐腐材料,具有良好的刚性和防腐性能,适应多种环境条件。采用全调速风扇,实现节能、低噪。

Stepless and low noise air-cooling condenser: The air cooling condenser adopts ship rot resistant material with rigid and has good anti-corrosion performance. It adapts to a variety of environmental conditions. Using full adjustable speed fan provides the energy saving and low noise.

    10HIMOD系列采用了全球独创径向离心直驱风机,设在空调中部,空调下部作为消噪音的静压箱,以避免风机设在底部直接吹向地面引起的空气扰动,风压在现场连续可调,范围从20Pa430Pa,满足各种送风环境;与传统的皮带式风机相比:更高效-可忽略的传输损耗;低噪音更小的震动;更少的维护-不必周期性更换皮带及必要的皮带调整;更洁净的机房环境。

The HIMOD series incorporates global original radial direct fan located in the central of air conditioning. In order to avoid the noise of fan the pressure box is arranged at the bottom blowing directly to the ground caused by air turbulence with air adjustable pressure in the field ranging from 20Pa to 430Pa to meet the various kinds of air environment. To compare with traditional belt type blower it reduces the transmission loss and provides more features with high efficiency, low noise, less vibration and less maintenance. It does not necessarily periodic replace the belt and the necessary belt adjustment. Let the room environment cleaner.

    其它特点:
    1
)具备加湿功能的机型,采用可拆卸并可自动调节、冲洗式加湿罐。为了适应许多水质很差的地区使用,它采用了独特的控制技术并使用了模糊逻辑控制软件。它可以根据水的电导率,自动调整电极的电流值。同时,它可以根据水的硬度,确定加湿罐的冲洗次数。加湿器为可拆装式,对加湿器进行清洗后可继续使用,一方面,可以延长加湿罐的使用寿命;另一方面,可以使加湿器达到最高的使用效率。因此,它可以用在水的电导率特别高的环境——常常是在很偏远的地区。

The humidifying function models is used the removable, adjustable automatically, and flushing type humidifier. In order to adapt many poor water areas, it adopts the control technology which is unique and the use of "fuzzy logic" control software. It can be based on the conductivity of the water current, automatically adjust the value of the electrode. At the same time, it can be determined the flushing times for humidification tank according to the hardness of water. The humidifier is removable. By clean the humidifier can continue to use, on the one hand, can prolong the service life of tank; on the other hand, and can make the humidifier that has the highest efficiency. Therefore, it can be used in the electrical conductivity of water that is particularly high in remote areas

    2)具备加热功能的机型。

With heating functional models.

    3)标准配置的空气过滤器,可保证机房达到要求的洁净度。

The air filter is standard which can guarantee to meet the requirements of cleanness in the room.

    4)可适应极宽的室外环境。普通机型-15℃ +45℃范围内制冷工作,LEE-TEMP机型-34℃ +45℃范围内制冷工作。加热不受温度条件限制。

The unit can adapt to outdoor environment very wide. The general model is suitable from -15 to +45 refrigeration, and the LEE-TEMP model is good from -34 to +45 refrigeration. The heating is not affected by temperature conditions.

    同时公司非常重视设备的每一个细节,注意到设计细节方法包括产品维护,做到高可靠性和友好的人机设计。例如:全部的至关紧要的冷却电路的部分,温度调节阀、膨胀阀、电磁阀、视镜和干燥过滤罐等,全部集合在易接近正前门的位置,真正做到可全部正面维护。

At the same time, the company pays attention to every detail for equipment, pays attention to design details including product maintenance, ensuring high reliability and friendly man-machine design. For example: all the crucial cooling circuit, temperature control valve, expansion valve, solenoid valve, mirror and drying filter tank, and all sets in the accessibility are the front door for maintenance.



适合应用的领域: Application


    实验室、计量室、造纸行业、烟草行业、纺织工业、博物馆、储藏室、手术室等。

Laboratory, metrology room, paper industry, tobacco industry, textile industry, museums, storage room, operation room.






精密空调 机房精密空调

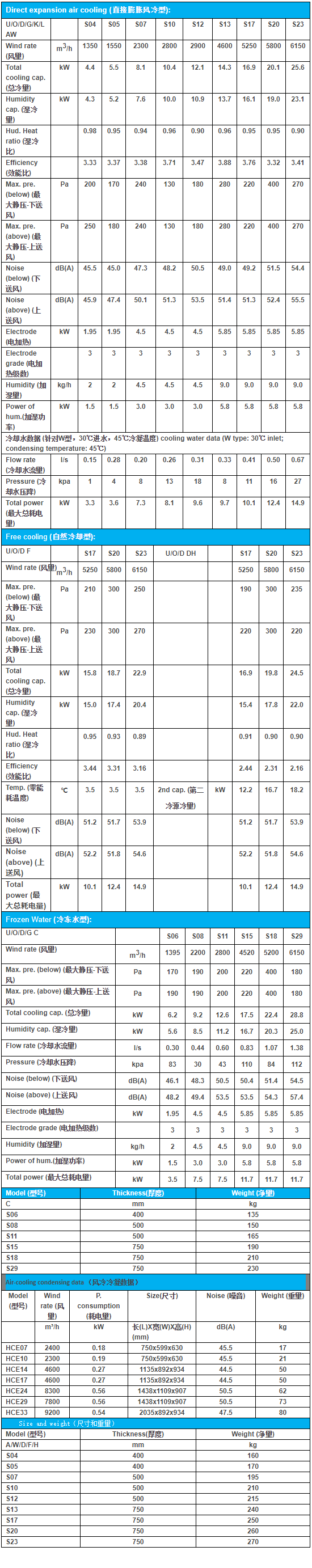

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.
此工程图仅供参考,新机型所使用的元件及机组内部的设计会根据实际状况而有所变动。
