Himod P 系列



最大的灵活性――模块化设计,外观更美观、一致;模块间任意组合。多种型号可供选择,适用各种条件。多种可选附件,适应各种环境要求。每台机组标配有可调速风扇,组合使用无需考虑均压问题。

高效风机――利用可变速新式叶轮高效风机,静压可在20Pa450Pa调节,结合特殊设计的大静压室,使得Himod空调低噪音得以实现。

节能――由于使用高效风机和涡旋式压缩机,使得Himod空调功耗大大降低(比传统型号低35%),运行及维修费用低。

智能化控制――每个模块均由新型微电脑控制器(DDC-MICRFACE)控制。多模块机组无须增加任何设备即可实现互相联动及程序控制,通过HIROMATIC控制器即可实现远程联网。

安装维修简单方便――完全全正面维护,部件拆卸维修简单,非常短的平均故障修复时间。机组侧面无需留空间,节省安装空间。加湿且带自动冲洗功能,加热器采用三级电加热,出风口标配风流均流器。

环境保护――Himod采用可循环使用的工业材料,对环境保护起着积极的作用。三明治夹层式面板结构,中间加阻燃隔热降噪材料,具有A0级防火性能。

Himod P series

Flexibility -- Modular design, beautiful appearance and uniform are good for module combination. A variety of models can be selected, and is suitable for various conditions. A wide range of optional accessories is applicable to adapt to a variety of environmental requirements. Each unit has adjustable speed fan by using a combination of without considering the pressure problems.

High efficiency fan -- Using the variable impeller high efficiency fan, the static pressure can be adjusted in 20Pa ~ 450Pa. Combined with the high pressure chamber with special design achieves the low noise.

Energy saving -- Due to the use of high efficiency fan and a scroll compressor, the power consumption of P series is greatly reduced (35% lower than traditional models), so as the operation and repair cost.

Intelligent -- Each module control consists of a new microcomputer controller (DDC-MICRFACE). Multi module unit without adding any equipment can realize mutual linkage and program control, and the HIROMATIC controller can realize the remote network.

Installation is simple and convenient to repair -- Totally frontal maintenance, disassembly simple repair, and mean time to repair is very short. Units side without any space save the installation space. The feature includes the humidifier with automatic cleaning function, the heater with three grade electric heating, and air outlet device with mean air flow distribution.

A recycled industrial material is used in environmental protection – Himod series plays a positive role in environmental protection. Sandwich type panel structure, the middle of flame retardant and heat insulation and noise reduction material, has the fire performance of A0 class.

/>

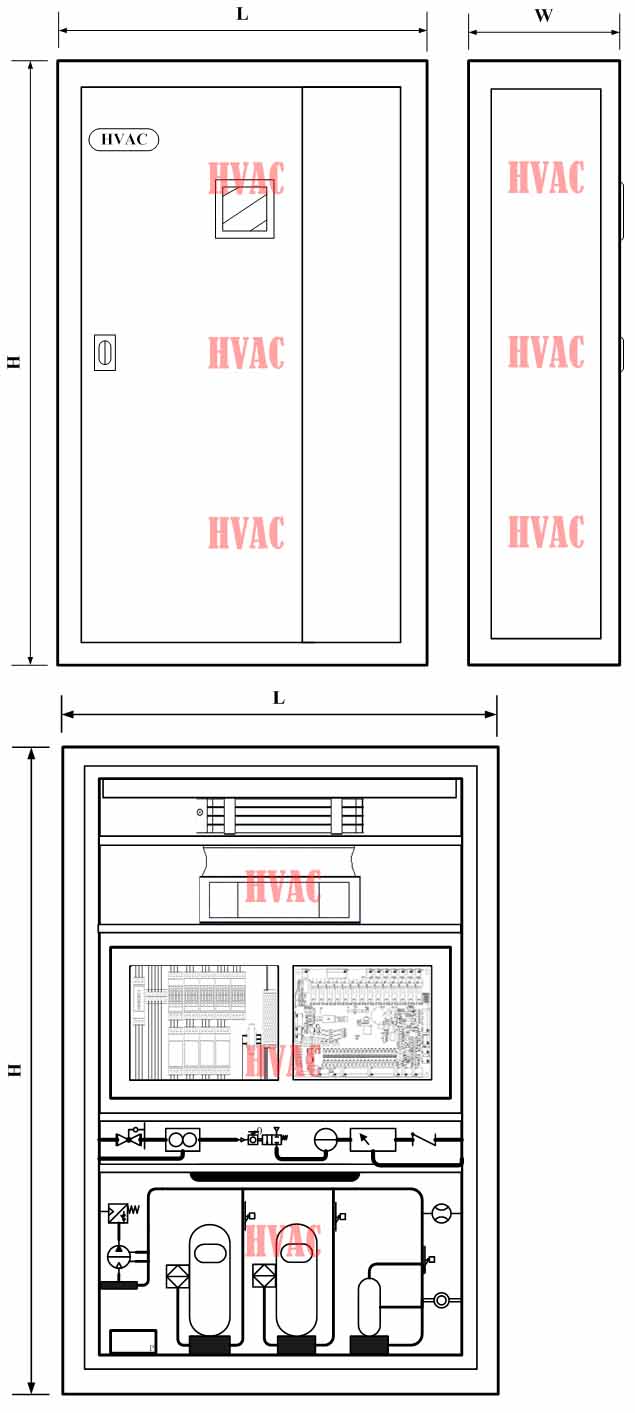

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.

此工程图仅供参考,新机型所使用的元件及机组内部的设计会根据实际状况而有所变动。
